1. Face to face isaccrding to DIN3202-F5

2. Flange drilled is according to DIN2531/DIN2532/DIN2533

3. Working temperature; 0-100°C

4. Working pressure:PN10-PN16

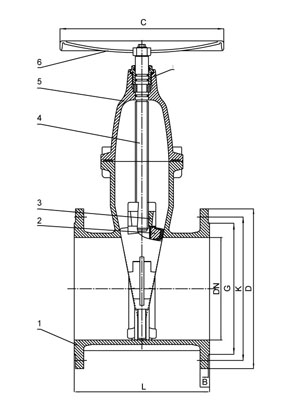

DN L D K G B C n- Ød
PN10 PN16 PN10 PN16 PN10 PN16 PN10 PN16
50 250 165 165 125 125 102 102 20 180 4-Ø18 4-Ø18
65 270 185 185 145 145 122 122 20 180 4-Ø18 4-Ø18
80 280 200 200 160 160 138 138 20 200 4-Ø18 8-Ø18
100 300 220 220 180 180 158 158 22 200 8-Ø18 8-Ø18
125 325 250 250 210 210 188 188 22 250 8-Ø18 8-Ø18
150 350 285 285 240 240 212 212 22 250 8-Ø22 8-Ø23
200 400 340 340 295 295 268 268 24 280 8-Ø22 12-Ø23
250 450 405 405 350 355 320 320 26 320 12-Ø23 12-Ø27
300 500 460 460 400 410 370 378 28 320 12-Ø23 12-Ø27
